Sea Frogs V1 Dome Ports with 23mm Extension Ring

SKU: SFDP90A6V1
$218.00 USD
$218.00 USD
$243.00 USD
Sold Out
Shipping calculated at checkout.

Dome Port Size 6"

Dome Port Material Acrylic

Surf Edition No

Depth's Vision: Pure clarity beneath.

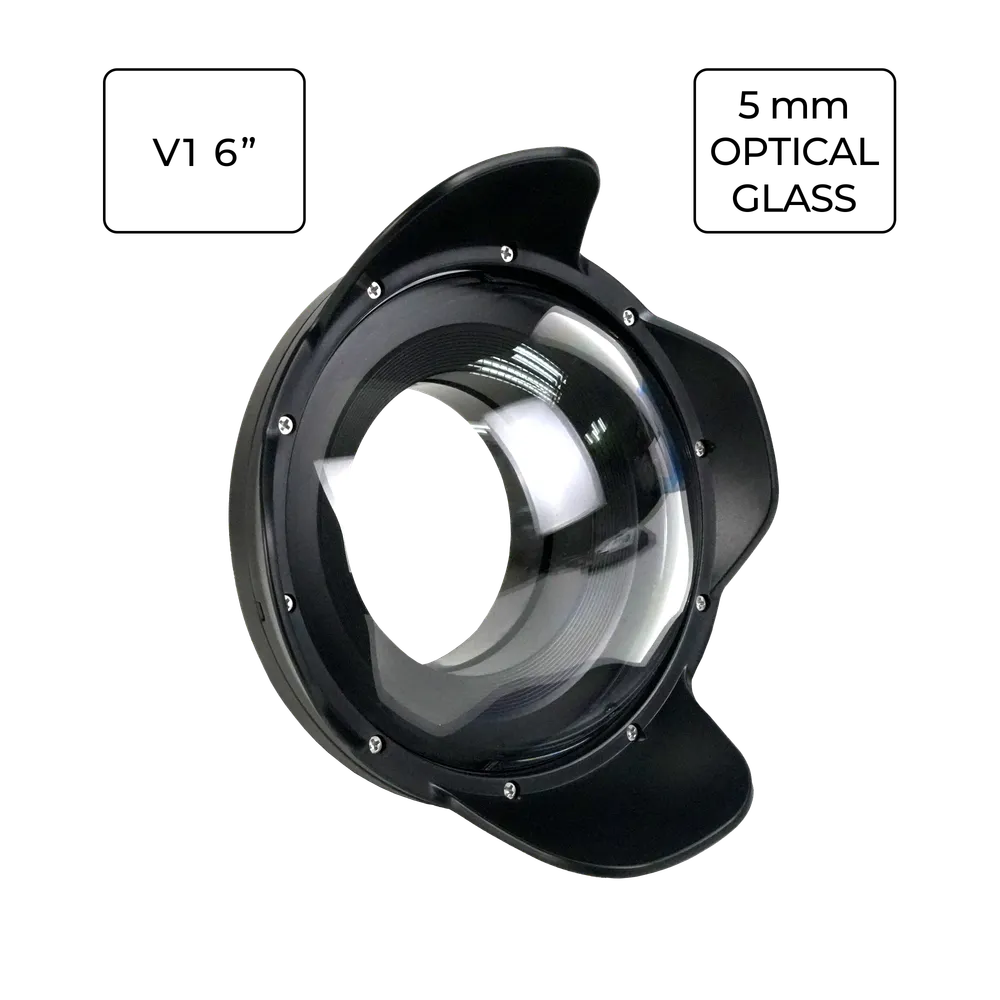

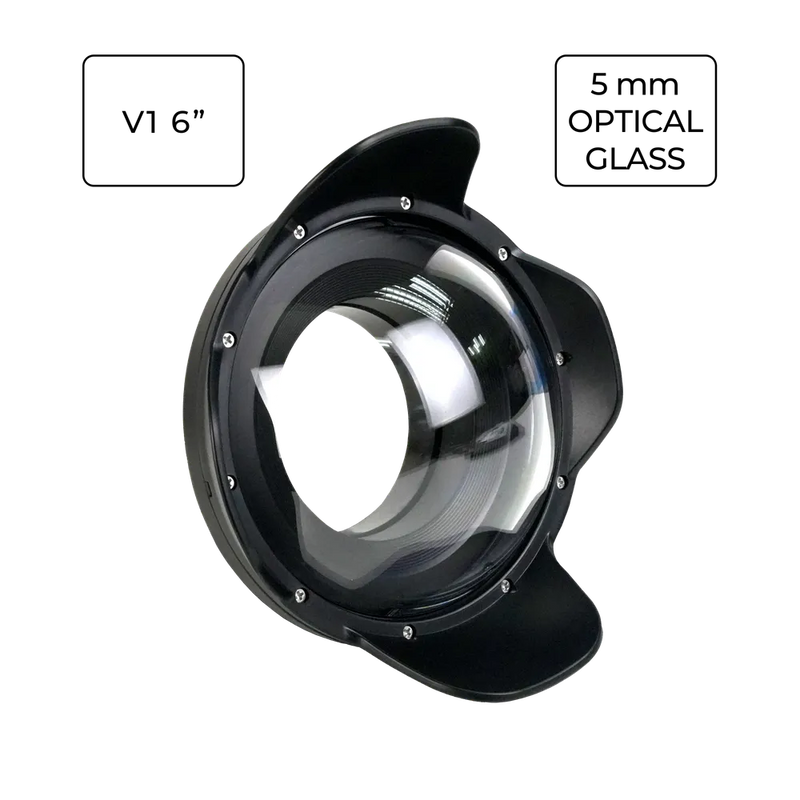

Sea Frogs 6" V1 Dome Port for Underwater Camera Housings

6'' | Optical Grade Acrylic | 90mm Mount | 23mm Extension Ring

The Sea Frogs 6'' Optical Grade Acrylic Dome Port V1 features the 87mm (3.43'') extension adapter ring. Designed with a 90mm (3.54'') bayonet mount. It is compatible with most Sea Frogs/Salted Line underwater housings, excluding A6xxx and RX1xx series models.

Specifications

Bayonet:

  • 90mm (3.54'')

Buoyancy:

  • Extremely Positive (Hand strap required)

Materials:

  • Acrylic

Dimensions:

  • Width: 185mm (7.28'')
  • Height: 205mm (8.07'')
  • Length: 87mm (3.43'')
  • Weight: ±470g (1.04lb)

Compatible Lenses

Sony Lenses:

  • Sony E 10-18mm F4 OSS (autofocus, manual zoom gear available)

  • Sony E 10-20mm F4 PZ G (autofocus only) Zoom gears are not available. The Sony FX3/FX30 and ZV‑E1/ZV‑E10 models rely on in‑camera zoom control.

  • Sony E 11 mm f1.8 (autofocus only) Focus Gear not Available

  • Sony E 20mm F2.8 (autofocus only) Focus Gear not Available

  • Sony E 20mm F2.8 + Ultra Wide Converter VLC-ECU2 (autofocus only) Focus Gear not Available

  • Sony E 24mm F1.8 ZA (autofocus only) Focus Gear not Available

  • Sony E 50mm F1.8 OSS (autofocus only) Focus Gear not Available

  • Sony E16-50 f3.5-5.6 PZ OSS (autofocus, manual zoom gear available) Zoom gears are not available for the Sony FX3/FX30 and ZV‑E1/ZV‑E10 models that rely on in‑camera zoom control.

  • Sony E16-50 f3.5-5.6 PZ OSS II (autofocus, manual zoom gear available) Zoom gears are not available for the Sony FX3/FX30 and ZV‑E1/ZV‑E10 models that rely on in‑camera zoom control.

  • Sony FE 16mm F1.8 GM (autofocus, manual focus gear available)

  • Sony FE 20mm F1.8G (autofocus only) Focus Gear not Available

  • Sony FE 28mm F2 (autofocus only) Focus Gear not Available

Sigma Lenses:

  • Sigma 10-18mm F2.8 DC DN E-Mount (autofocus, manual zoom gear available)

  • Sigma 16mm F1.4 DC DN E-Mount (autofocus only) Focus Gear not Available

  • Sigma 19mm F2.8 DN Art E-Mount (autofocus only) Focus Gear not Available

  • Sigma 30mm F1.4 DC DN | C E-Mount (autofocus only) Focus Gear not Available

  • Sigma 60mm F2.8 DN Art E-Mount (autofocus only) Focus Gear not Available

Canon Lenses:

Fujifilm Lenses:

  • Fujifilm XC 16-50mm F3.5-5.6 OIS II (autofocus, manual zoom gear available)

  • Fujifilm XF 14mm F2.8 R (autofocus only) Focus Gear not Available

  • Fujifilm XF 16mm F1.4 R WR (autofocus only) Focus Gear not Available

  • Fujifilm XF 18-55mm F2.8-4 R LM OIS (autofocus, manual zoom gear available)

  • Fujifilm XF 18mm F2 R (autofocus only) Focus Gear not Available

  • Fujifilm XF 23mm F1.4 R (autofocus only) Focus Gear not Available

  • Fujifilm XF 23mm F2 R WR (autofocus only) Focus Gear not Available

  • Fujifilm XF 35mm F1.4 R (autofocus only) Focus Gear not Available

  • Fujifilm XF 35mm F2 R WR (autofocus only) Focus Gear not Available

  • Fujifilm XF 50mm F2 R WR (autofocus only) Focus Gear not Available

  • Fujifilm XF 56mm F1.2 R (autofocus only) Focus Gear not Available

Rokinon/Samyang Lenses:

  • Rokinon/Samyang 8mm F2.8 UMC FISH EYE II E-Mount (autofocus only) Focus Gear not Available

Samyang Lenses:

  • Samyang 12mm F2.0 AF E-Mount (autofocus only) Focus Gear not Available

  • Samyang AF 14mm F2.8 FE E-Mount (autofocus only) Focus Gear not Available

Compatible Housings

Sony Housings:

Canon Housings:

Fujifilm Housings:

Key Features

  • Standard Sea Frogs 90mm Bayonet Mount
  • Dome Diameter 152.4mm (6')
  • 23mm Extension Adapter Ring

Package Includes

  • Sea Frogs 6'' V1 Dome Port x1
  • Spare O-ring
  • Silicone grease 5ml
  • Dome Port Cap (back)

Frequently Asked Questions

How deep can it go? +
The 6'' Dome Port V1 is rated for depths of up to 40 meters (130 feet), ensuring reliable underwater performance.
Acrylic vs Glass +
Acrylic ports deliver solid image quality in most scenarios, and they have the advantages of being lighter, more affordable, and easier to repair. Glass dome ports, while offering slightly superior image quality in specific conditions and better scratch resistance, cannot be repaired if scratched.
6" vs 8" +
The 6" domes deliver excellent image quality in most shooting conditions while being significantly more compact and travel-friendly, making them the preferred choice for many users. While 8" domes can offer slightly improved edge sharpness, their larger size makes them bulkier and less convenient to transport.
How deep can I use this port? +
The '' Dome Port is rated for depths of up to 40 meters (130 feet).
Is it compatible with my Sea Frogs housing? +
This port uses a 90mm (3.54'') bayonet mount. It is compatible with most Salted Line / Sea Frogs housings, excluding A6xxx and RX1xx series models.
Does the port come with an extension ring? +
Yes — this port includes a 87mm (3.43'') extension adapter ring.

Please Note: Camera and lens not included with the housing.
